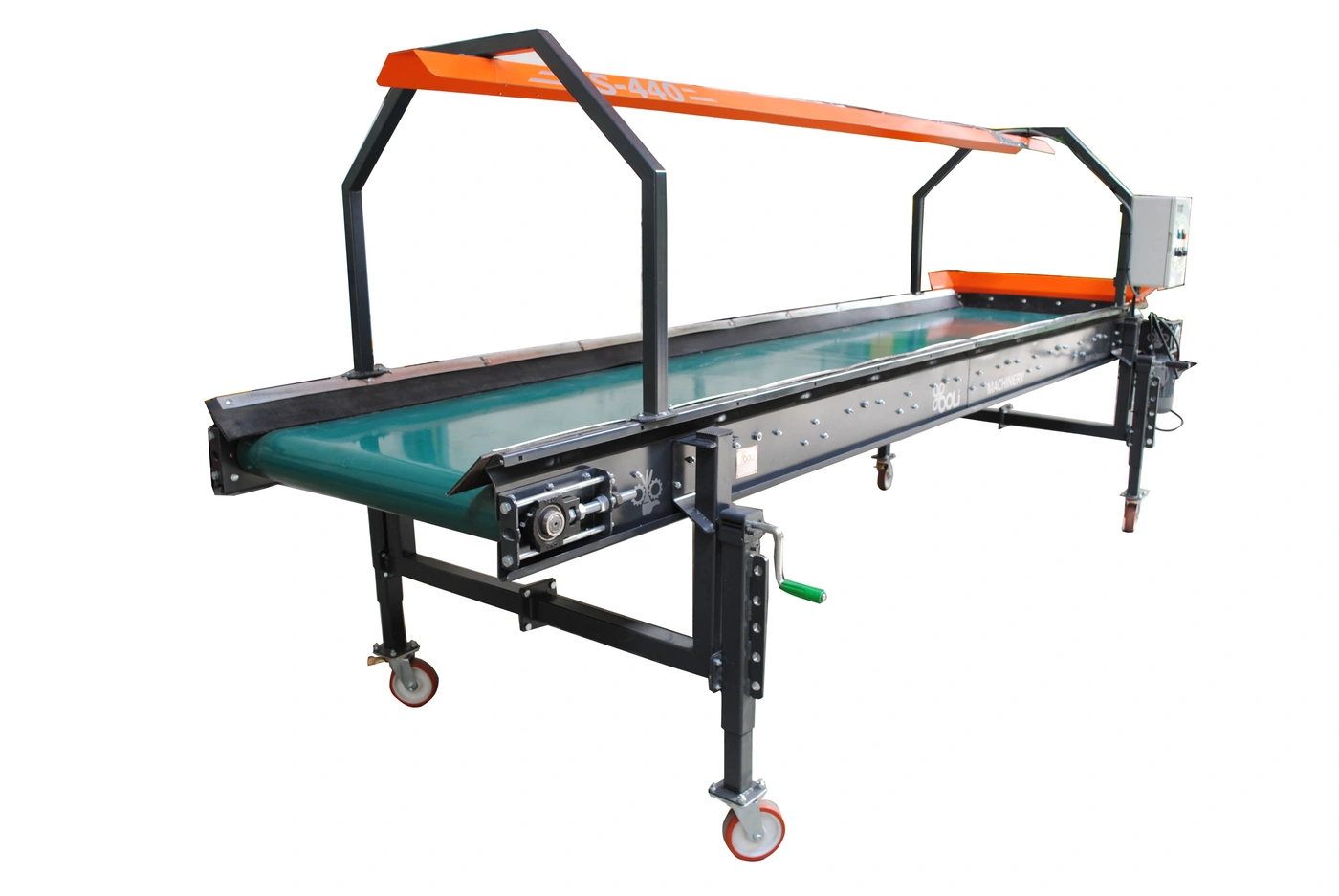

DS-300 Inspection conveyor
An inspection conveyor for manually removing foreign material and unsuitable produce from the product flow.
Discuss this product ↗Suitable produce
Potatoes, onions, beetroot, carrots and other tuber crops. Let’s assess machine selection for the characteristics of your produce and the required workflow.
Role in your workflow
A manual inspection point for removing foreign material and unsuitable produce from the flow.
Before requesting a quote
Specify the produce to inspect, working space and upstream and downstream equipment.
Machine selection and inlet/outlet connections are assessed against your target throughput and layout.
Technical specifications
| Belt Width | 780 mm |
|---|---|
| Belt Length | 4200 mm |
| Belt Motor Voltage | 380 V |
| Belt Input Height | 900 mm |
| Belt Output Height | 1900 mm Max. |
| Belt Speed | 0.1 m/s - 4.5 m/s |
| Overall Length | 4600 mm |
| Overall Height | 1800 mm Max. - 1400 mm Min. |
| Overall Width | 1350 mm |
