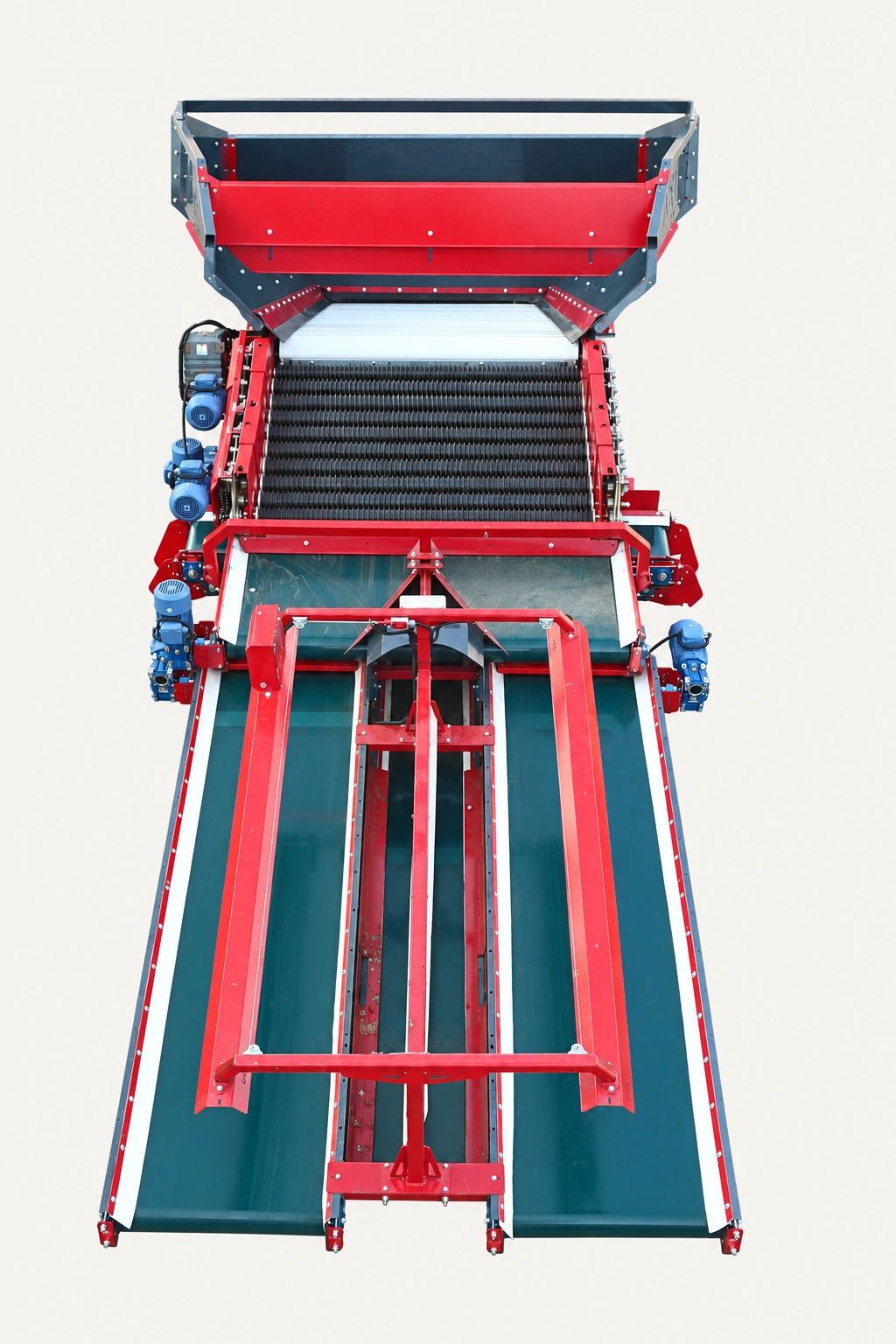

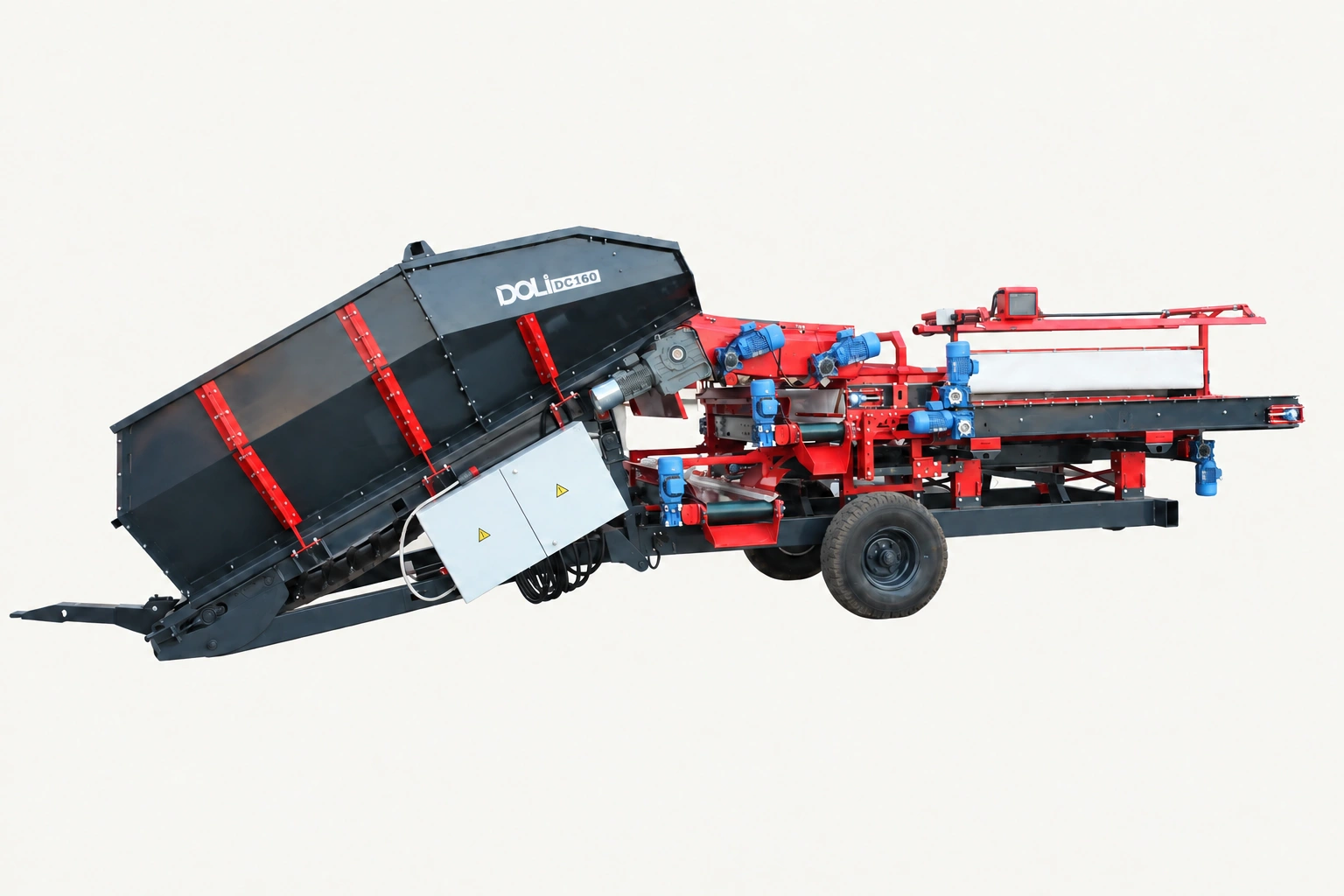

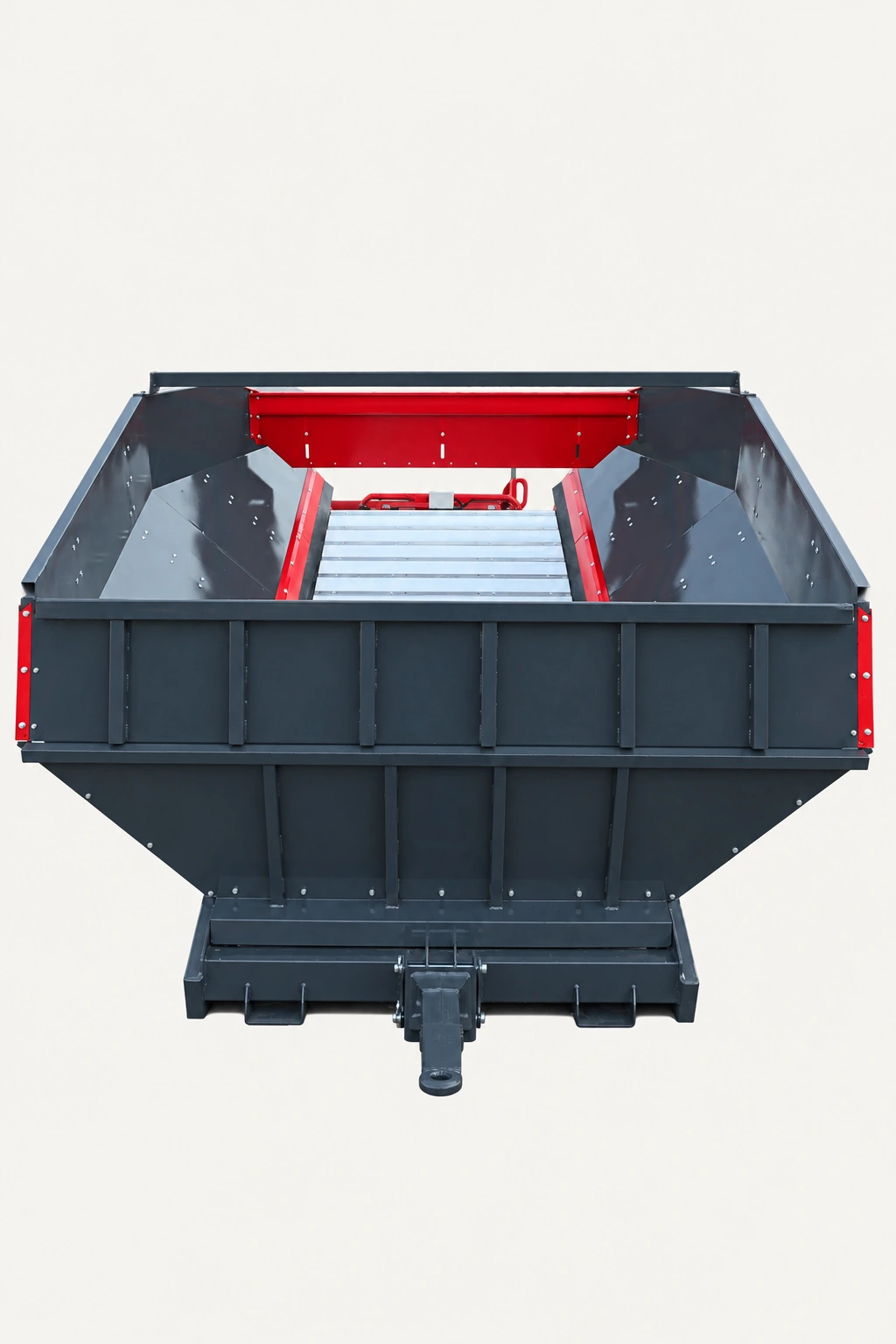

DC-160 Soil separation, grading, inspection and packing bunker
An integrated bunker for soil separation, grading, inspection and packing, offered with big bag or sack filling options in the catalogue.
Discuss this product ↗Suitable produce
Potatoes, onions, beetroot, carrots and other tuber crops. Let’s assess machine selection for the characteristics of your produce and the required workflow.
Role in your workflow
Produce preparation spanning soil separation, grading, manual inspection and filling. We recommend DC-160 for processing 50 tonnes or more per day.
Before requesting a quote
Describe the incoming produce, required size grades and your big bag or sack filling preference.
Machine selection and inlet/outlet connections are assessed against your target throughput and layout.
IN OPERATION
DC-160 bunker
Explore a DC-160 bunker application for grading, cleaning and packing.
Watch on YouTubeWatch on YouTube ↗Technical specifications
| Belt Width | 1600 mm |
|---|---|
| Belt Length | 3500 mm |
| Belt Motor Voltage | 380 V |
| Product Input | Conveyor Belt |
| Belt Output Height | 2200 mm |
| Belt Speed | 0.1 m/s / 4.5 m/s |
| Overall Length | 9870 mm |
| Overall Height | 2550 mm |
| Overall Width | 3700 mm |
| Control Terminal | PLC screen |
| Loading Dimensions | Adjustable |
| Soil Removal Roller | Adjustable |
| Small Crop Removal Roller | Adjustable |
| Grading Conveyor | Adjustable |
